11990349 L150F L150E Wheel Loaders LIFT Hydraulic Cylinder Seal Kit Seal Repair Kit
Model:Volvo L150F L150E Wheel Loaders LIFT hydraulic cylinder seal kit
Part number:VOE11990349
Cylinder No:11088778,11005470,11088807,11088497,
Rod:90MM
Piston:170MM
For:Volvo L120C,L150C,L150D,L150
Material:PU+NBR+PTFE
CertifiCATEEion: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability:100
MOQ:1set
Parts list
| NO. | Part Number | Quantity | Product name |
| | VOE11005470 | 1 | Hydraulic cylinder |
| | VOE11088115 | 1 | Hydraulic cylinder |
| | VOE11088497 | 1 | Hydraulic cylinder |
| | VOE11088807 | 1 | Hydraulic cylinder |
| 1 | VOE11005320 | 1 | •Cylinder tube |
| | VOE11088116 | 1 | •Cylinder tube |
| 2 | VOE11093771 | 1 | •Bushing |
| 3 | VOE11005099 | 2 | •Scraper ring |
| 4 | VOE11088821 | 1 | •Piston rod |
| 5 | VOE13960229 | 1 | •O-ring |
| | VOE11088029 | 1 | •O-ring |
| | VOE11088029 | 1 | •O-ring |
| 5A | VOE4881099 | 1 | •Back-up ring |
| 6 | VOE11005471 | 1 | •Piston |
| 7 | VOE11088467 | 1 | •Piston seal |
| 8 | VOE11005323 | 1 | •Guide ring |
| 9 | VOE4833164 | 3 | •Screw |
| 10 | VOE11088802 | 1 | •Piston rod guide |
| | VOE11088802 | 1 | •Piston rod guide |
| 11 | VOE925036 | 1 | •O-ring |
| 12 | VOE4787039 | 1 | •Back-up ring |
| 13 | VOE11005427 | 2 | •Bushing |
| 14 | VOE11107371 | 1 | •Piston rod seal |
| 15 | VOE11005107 | 1 | •Piston rod seal |
| 16 | VOE11005061 | 1 | •Scraper ring |
| 17 | VOE4782860 | 8 | •Hex. socket screw |
| 18 | VOE941912 | 8 | •Spring washer |
| | VOE11990349 | 1 | Sealing kit |

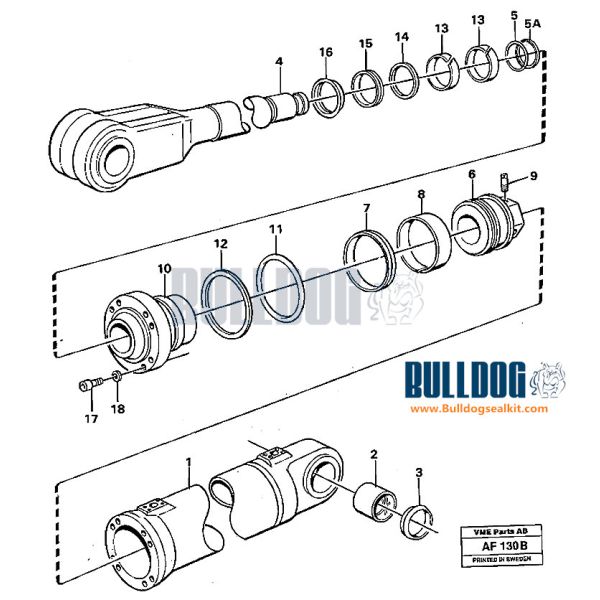

Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
